Euro profile Cylinder PC03-45mm
- Model No:
- PC03
- Category:
- Euro Cylinder & Panic Bar
- Domain:
- Hotels & Resorts

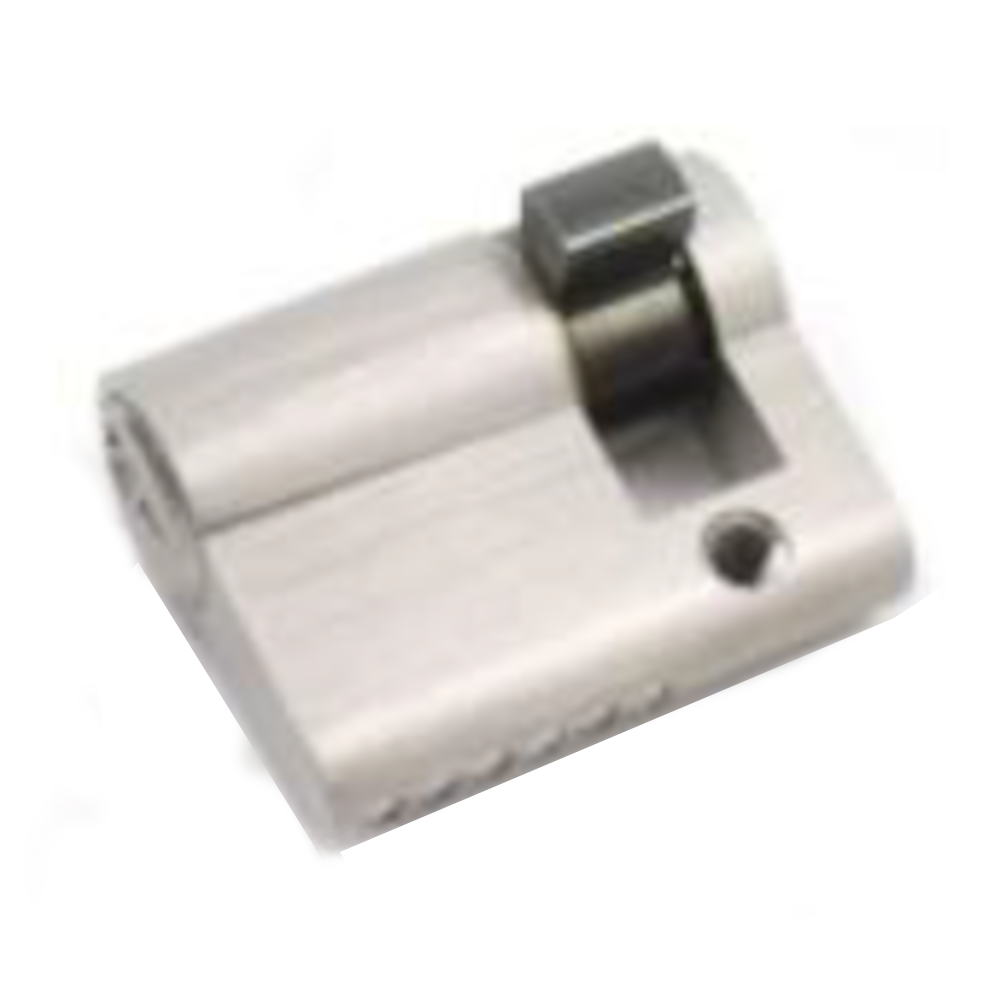

The Euro profile cylinder PC03-45mm
The Euro profile cylinder PC03-45mm is a type of keyed cylinder commonly used for locking doors. This cylinder is designed to fit into the standard Euro profile cylinder lock, which is widely used across Europe and other parts of the world. The 45mm measurement refers to the length of the cylinder, making it suitable for use in doors with a standard thickness.
Make Order
Details
- Euro standard lock cylinders that deliver on quality and performance, meeting all EN1303:2005 standards.
- These cylinders are manufactured by an ISO 9000 registered factory, ensuring the highest level of quality.
- The products are fire-rated for a minimum of 2 hours, some up to 3 hours, with successful testing to EN1634, making them suitable for use on fire doors.
- They are CE marked and certifire approved, conforming to strict DIN18251 standards.
- With a durability grade of 6 and over 1 million cycles tested, these cylinders feature stainless steel 6 pins, providing resistance to drilling and prying.
- Equipped with 65mm fixing screws, and longer screws for larger locks, these cylinders are available in various sizes and finishes including SNP, CP, MAB, PB, and more.
Specifications
Euro Profile Cylinder PC03
- Half cylinder,outside by key
- Successfully tested for all the requirements of EN1303:2005
- Solid brass body
- Top 6 pins made of solid brass
- Bottom pins of anti-drill SUS304
- Tested to 200,000cycles
- More than 250,000 differs
- With 3 pcs of brass keys and 1 pc of steel screw
- Satin Nickel or Polished brass finish and other finishes available
- Vertical key guide
- Available for any size
- Available for Master Key System
