The Door Control Unit 2700M is a technology solution designed to improve the management and control of doors in buildings. It provides a centralized system for controlling access to doors and can be integrated with other building management systems, such as security or access control systems, to provide a comprehensive solution.
Make OrderThe Hallmark Locks Door Control Unit is the perfect solution to provide access control on common doors, such as parking barriers, health centers, gym room, conference room, staff entrances, guest night entrances and more, our Door Control Unit is fully compatible with Be-Tech electronic locking systems and provides better guest experience for your hotels.
Electrical Specifications:
DCU Model |
MJM |
2700M |
- |
Supply Voltage |
18VDC |
12VDC |
- |
Supply Current |
6A |
2A |
- |
Load current, output 1 |
Max. 3A @ 12VDC |
Max. 3A @ 12VDC |
Resistive load |
Load current, output 2 |
Max. 3A @ 12VDC |
- |
Resistive load |
Each complete unit, supplied individually packed, consists of:
Model MJM:
1)Door Control Unit with reader.
2)Control box.
3)External Power supply.
4)Inward wireless Door Exit switch.
Model 2700M:
1)Door Control Unit with reader.
2)External power supply.
3)Inward wireless Door Exit switch.
Dimension-MJM:
Reader:
Height: 91 mm / 3.58 inch
Width: 104 mm / 4.09 inch
Depth: 39 mm/ 1.54 inch
Relay box:
Height: 310 mm / 12.2 inch
Width: 160 mm / 6.3 inch
Depth: 72 mm / 2.83 inch

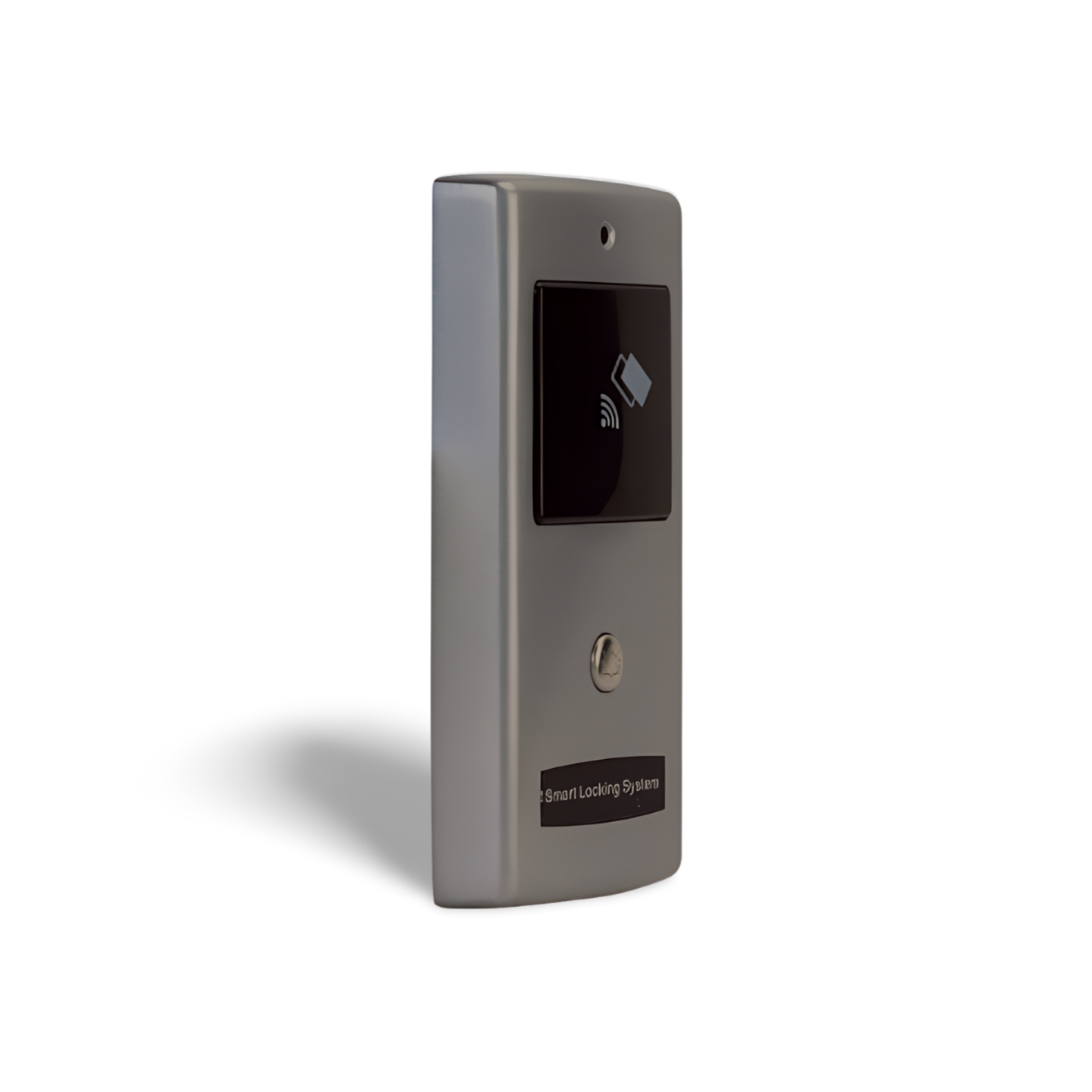

Dimension-2700M:
Reader:
Height: 153 mm / 6.02 inch
Width: 78 mm / 3.07 inch
Depth: 22 mm / 0.87 inch
