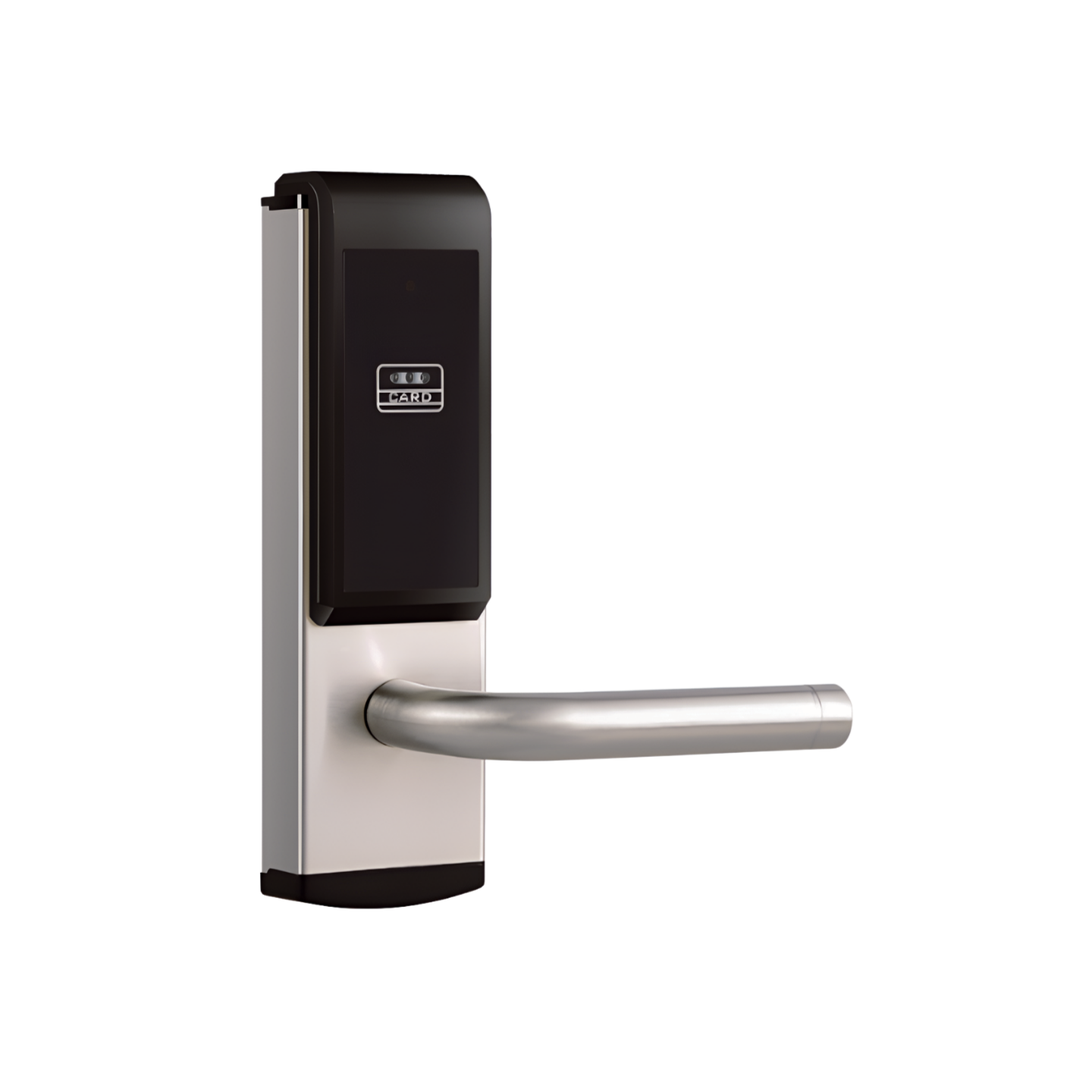

ELECTRONIC HOTEL LOCK - BASE II 'LEVER' RFID
- Model No:
- E956M
- Category:
- Electronic Hotel Locks
- Domain:
- Hotels & Resorts
The Electronic Hotel Card Lock - BASE II 'LEVER' RFID is an innovative solution for hotels and other lodging accommodations. It utilizes Radio-Frequency Identification (RFID) technology to allow guests to access their rooms with a keycard or key fob. The lock mechanism works by reading the RFID chip contained in the keycard or fob, and then sends a signal to open the door.
Make Order
Details
Description:
The Hallmark Locks BASE II 'LEVER' RFID is a sleek cylindrical latch system that blends modern design with expert engineering to deliver an advanced security option. It is seamlessly integrated into back-of-house security designs, enhancing both life safety and property security. This system is compatible with existing Be-Tech installations.
The BASE II 'LEVER' RFID is an ideal solution for upgrading older mechanical locking systems or improving back-of-house controls. It is based on the same product platform as the Be-Tech RFID locking system, making it compatible with the BIS HOTEL software platform.
Features:
- Stand alone electronic lock with RFID technology.
- Easily replaces existing mechanical lever-set or knob-set without any carpentry.
- 60/70mm backset adjustable tubular latch.
- ANSI/BHMA Grade 3 approved tubular latch.
- Brushed stainless steel finish with higher anti-corrosion performance.
- Anti-panic exit system - For convenience and in case of emergency, it allows you to open the door by simply turning its handle from inside.
- ADA compliant (guest with physical disabilities).
- Future proof re-programmable FLASH RAM lock memory.
- Powered by four AA batteries that provide up to 1 year normal life time.
- 414 events audit trail.
- Compatible with BIS HOTEL software platform.
- Compatible hotel function and residential function.
Specifications
- 13.56MHz technology
- Compatible with the following standard
ISO 14443 A (MIFARE Classic)
- Eleven free sectors for future All-in-one card application use
Technical Data:
- Power: 4 x 1.5V AA alkaline batteries
Battery Location: Inside of the back lock
Material:Handles: Stainless steel quality SUS304.
- Lock body: Stainless steel quality SUS304
- Metal Finishes: Silver, Matte Black
- Emergency Opening Options: Emergency Opening with Mechanical cylinder
- Locking Mechanism: Electro-mechanical locking mechanism
- Door Thickness: 35-60mm (only for EURO mortise)
- System Software Compatibility: BIS Hotel
- Storage Temperature: Workable -20˚C~60˚C: non-condensing environment
- Tested Operating Temperature: Tested from -25˚C~70˚C
- Supported RFID Standard: ISO 14443 A (MIFARE Classic)
