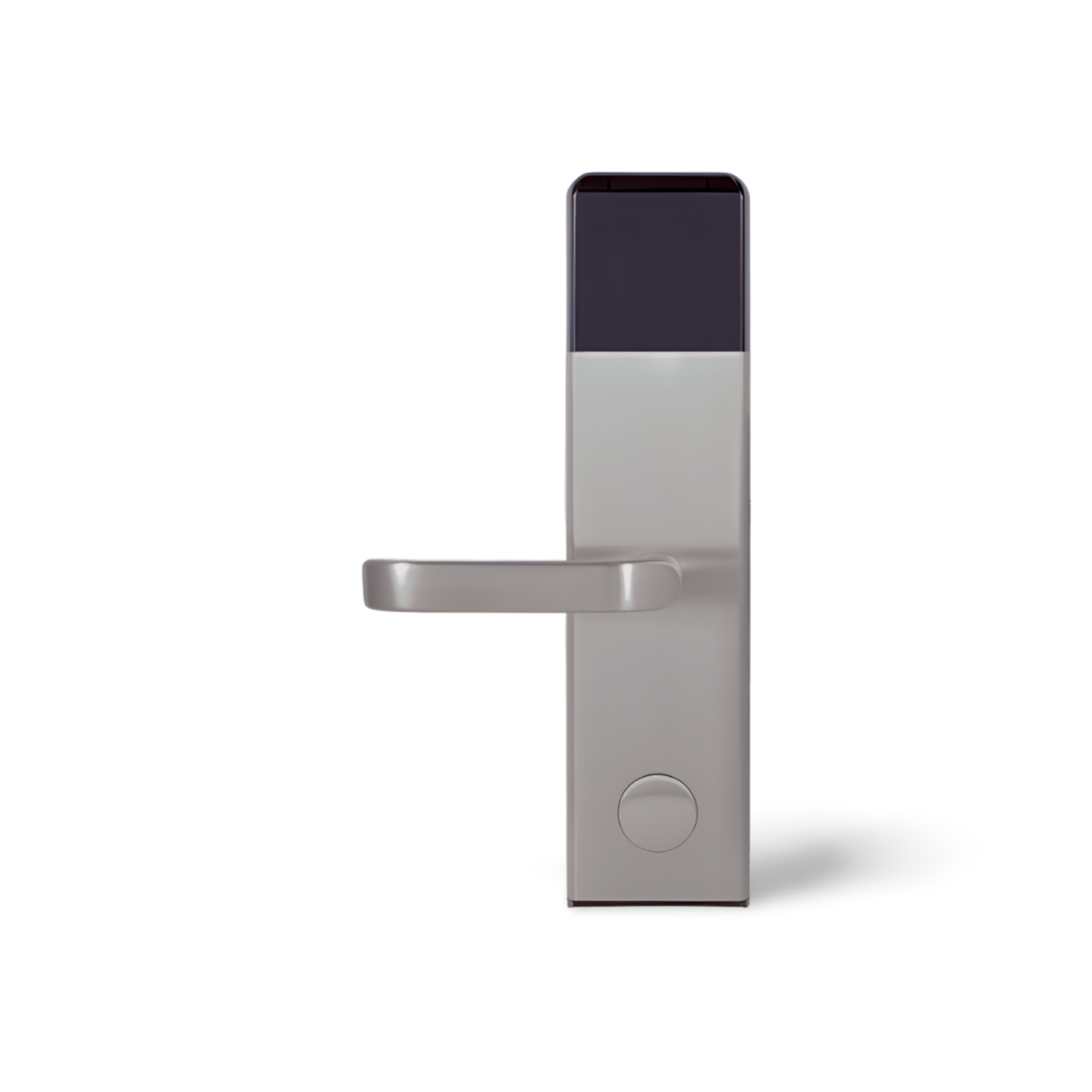

ELECTRONIC HOTEL LOCK - BASE RFID (9248 SERIES)
- Model No:
- 9248 - 65A
- Category:
- Electronic Hotel Locks
- Domain:
- Hotels & Resorts
Hallmark Locks offers the latest and reliable Radio Frequency Identification (RFID) technology, providing an ideal and cost-effective solution for contactless access. Specifically designed for hotels, the electronic lock presents a highly flexible solution for future All-in-one card applications.
Make Order
Details
Features:
- Standalone electronic lock featuring RFID technology
- High-security stainless steel mortise lockcase, available in ANSI, AUS, and EURO versions.
- Stainless steel handle with a brushed surface.
- 3-point stainless steel latch construction with an anti-friction mechanism.
- Mortise equipped with a 20mm throw high-strength deadbolt.
- Panic release function: the deadbolt and latch are automatically retracted by the inside handle for easy retreat in emergency situations.
- ADA compliant for guests with physical disabilities.
Future-proof, re-programmable FLASH RAM lock memory. - Powered by four double AA alkaline batteries providing up to 9 months of normal lifetime.
Specifications
RFID Specifications:
- 13.56MHz technology
- Compatible with the following standard : ISO 14443 A (MIFARE Classic)
- Eleven free sectors for future All-in-one card application us
Technical Data:
- Power :4 X 1.5V AA alkaline batteries
- Battery Location: Inside of the back lock
- Handles: Stainless steel
- Lock body: Stainless steel quality SUS304
- Metal Finishes:Silver
- Emergency Opening Options:Emergency Opening with Mechanical cylinder
- Locking Mechanism：Electro-mechanical locking mechanism
- Door Thickness：35-80mm (only for EURO mortise)
- System Software Compatibility：BIS Hotel
- Storage Temperature：-40°C~80°C,non-condensing environment
- Tested Operating Temperature：Tested from :-20C~66°C
- Supported RFID Standard：ISO 14443 A (MIFARE Classic)
