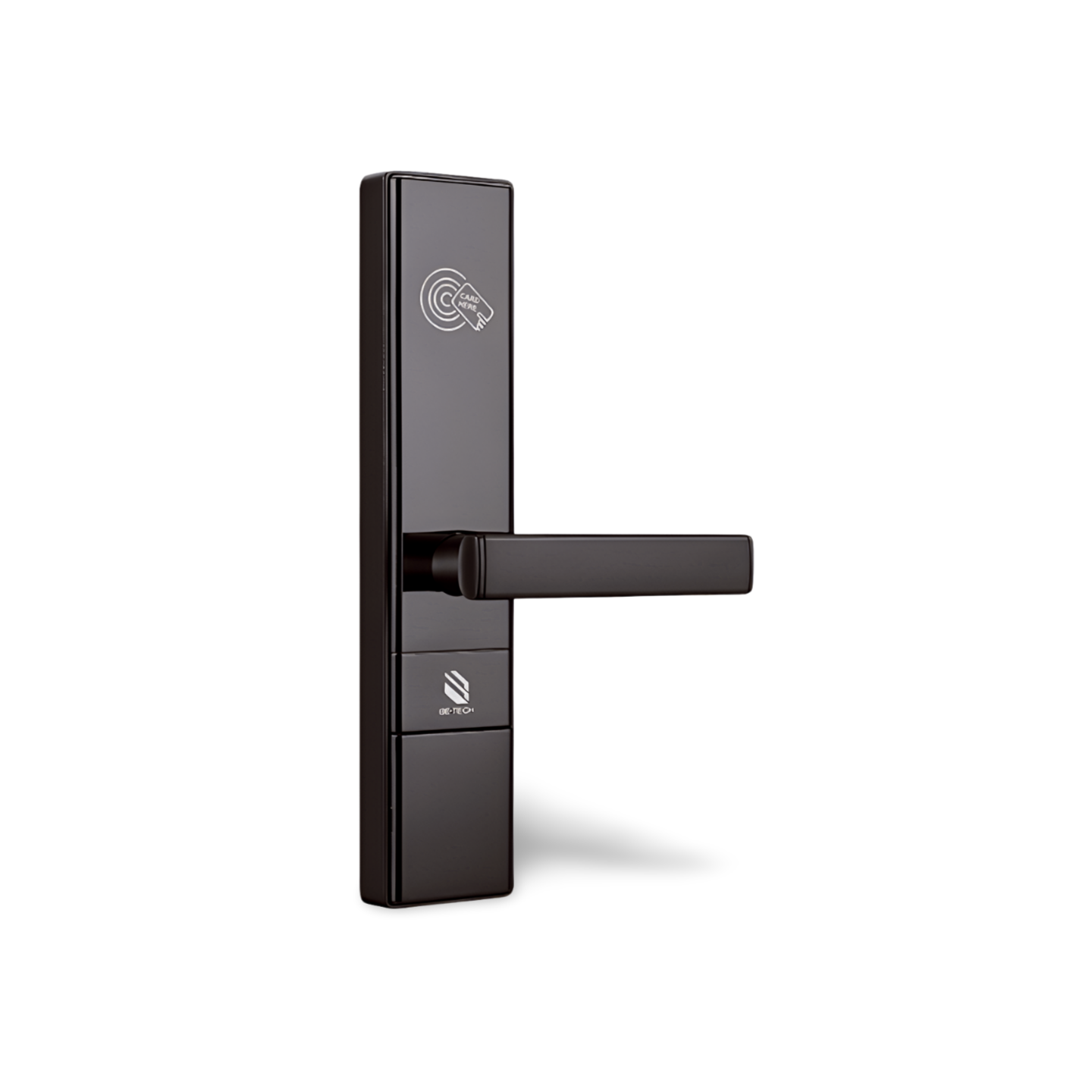

ELECTRONIC HOTEL LOCK -VISUAL III RFID (V5 SERIES)

Details

Descriptions:

• Hallmark Locks VISUAL III RFID series is the latest electronic locks that use simple, fashionable and comfortable design.
• Hallmark Locks VISUAL III RFID series is especially designed for the modern and fashionable hotels with the desire of making sure the lock perfectly blends into the fashionable hotel environment.
• The sparkling bright spot, Not just the looks". With the combination of Be-Tech VISUAL III RFID series matte black finish, it allows architects and designers maximize hotel's fashion sense and enhance user experience to a new level.

Features:

• Stand alone electronic lock with RFID technology.
• High security stainless steel mortise lockcase available in ANSI, AUS and EURO versions.
• 3-point stainless steel latch construction with antifriction mechanism.
• Mortise equipped 20mm throw high strength deadbolt.
• Panic release function - the deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situation.
• ADA compliant (guest with physical disabilities).
  Future proof re-programmable FLASH RAM lock memory.
• Powered by four AA batteries that provide up to 1 year normal life time.
• 1000 events audit trail.
• Compatible with BIS HOTEL software platform.
• High security mechanical override cylinder available.

Specifications

Technical Data:

• Power: 4 X 1.5V AA alkaline batteries
• Battery Location: Inside of the back lock
• Material: Handles: Aluminum Alloy
• Lock body: Aluminum Alloy
• Metal Finishes: Matte Black
• Emergency Opening Options Emergency Opening with Mechanical cylinder
• Locking Mechanism : Electro-mechanical locking mechanism
• Door Thickness: 35-80mm (only for EURO mortise)
• System Software Compatibility : BIS Hotel
• Storage Temperature : Workable -20°C~80*C: non-condensing environment
• Tested Operating Temperature Tested from -25°C~70°C
• Supported RFID Standard : ISO 14443 A (MIFARE Classic)
